P2.5 Led Panels For Video Wall Screen 4K High Definition Indoor Led Display
Product Description:
1)With good lightening accordance and no mosaic.
2)Can play different formats of image files, flash, video signal from TV, video and other equipments.
3)Different video frequency can be changed freely at the same time, and the image can be enlarged and shrinked.
4)High brightness, and can be adjustable, meets the needs of customer's requirements.
5)Uses real pixels rather than virtual pixcels, better viewing effect .
6)With the best quality IC MBI5153, refresh rate can be reached 3840HZ, and show you the perfect visual effect.
7)The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
Technical Specifications:
| Pixel Pitch | 2.5mm |
| Pixel Density | 160000dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD2020 |

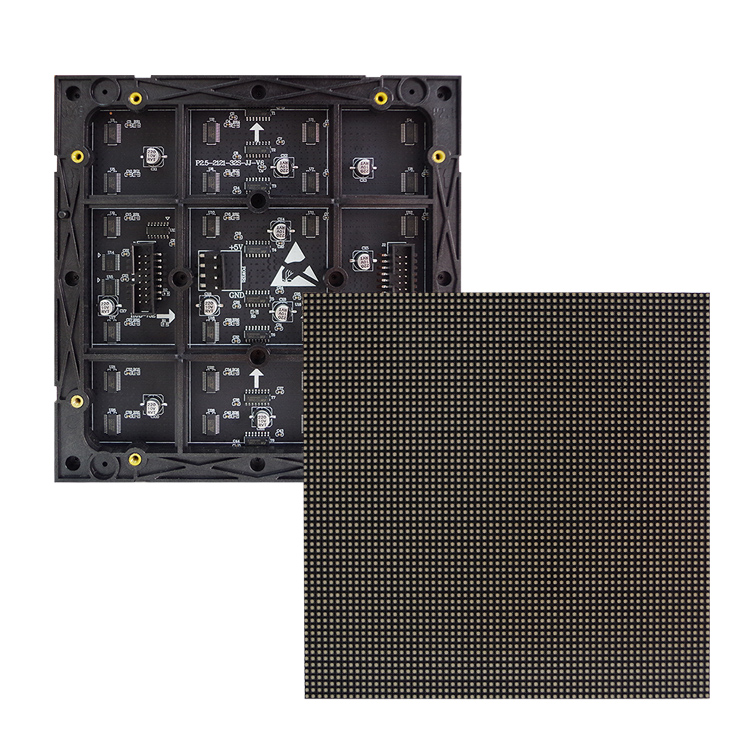

| Module Size | 320*160mm/160mm x 160mm |
| Module Resolution | 64dots x 64dots |
| Drive Mode | 1/32 Scan |
| Standard Cabinet Size | 640mm x480mm/480mm x 480mm |
| Cabinet Material | Die-casting Aluminum |
| Cabinet Weight | 12KG/7KG |
| Drive IC | ICN2153s or MBI5124 |
| Brightness | 1500 cd/sqm, adjustable by software |
| Viewing Distance | 2m-50m |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | 3840HZ, adjustable by software |
| Frame Rate | 120frame/s |
| Grey Scale | 16.7M colors(Synchronized) |
| Color Temperature | R.G.B brightness 256 level adjustable |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 850W/sqm |
| Ave. Power Consumption | 350W/sqm |
| Storage Temperature | -30℃~+70℃ |
| Working Temperature | -20℃~+50℃ |
| Blind Spot Rate | <1/10000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP65 |
| Operating Humidity | 10%~90% RH |
| Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
| PC Display Resolution | 1280x1024 |
| Control PC | With DVI Graphic card |
| Operating System | Win 98, Win2000, XP, Win7, Win8,Win10 |
| Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
| Certificate | CE, RoHS |
Features:
1) Die casting aluminum cabinet, super light and thin, reducing the shipping cost.
2) Easy to install, effectively saving the time.
3) Select high-performance PCB board substrate and cooperate with rigorous process to greatly reduce the "color temperature" phenomenon.
4) Larger viewing angle to 140° at horizontal line, 140 degree at vertical line.
5) No mosaic or ghost, display the exquisite and sharp picture.

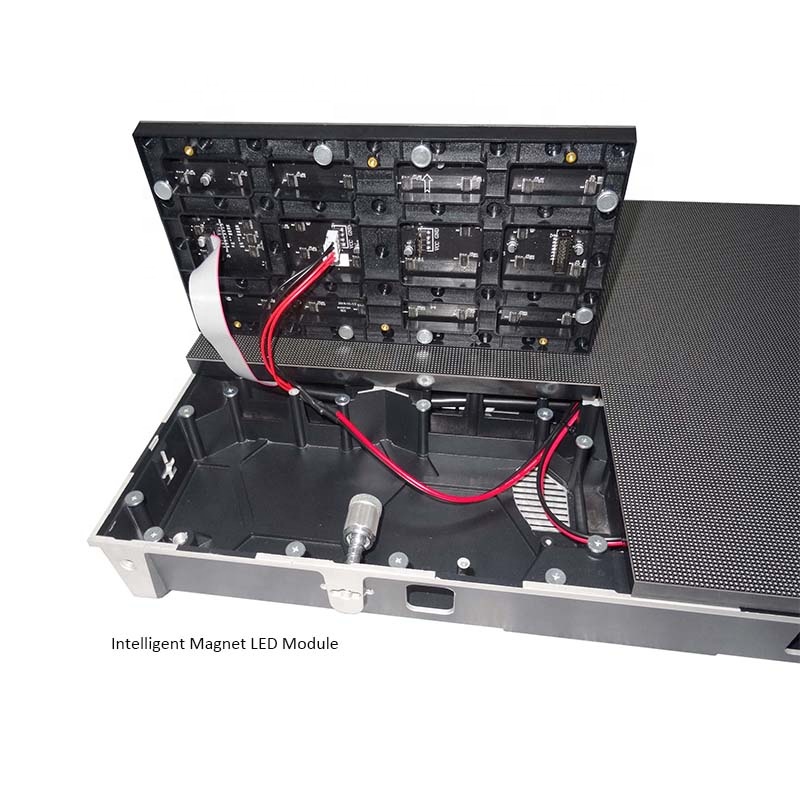

6)The cabinet can be installed front / rear and front maintenance, which can meet various installation methods such as fixed installation and lifting.
FAQ:
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Indoor&Outdoor P2.5mm/P2.9mm/P3mm/P3.75mm/4mm/5mm/P6mm/P4.8mm/P5.33/P6mm)
Q2: Where is it used for?
A2: Indoor & Outdoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar And Linsn controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
