P3.91 Rental Rgb Flexible Indoor Led Video Wall For Exhibition , Energy Saving
Quick Detail:
1. Excellent contrast ratio with 4000:1 , high resolution/high definition
2. Light weight (8KG per panel ), and easy to move and install
3. Best uniformity and no mosaic
4. Available models: P3.91, P4.46,P5.2, P6.25.
5. Long lifespan up to 100,000 hours
6. Aluminum alloy material, heat dissipation well.

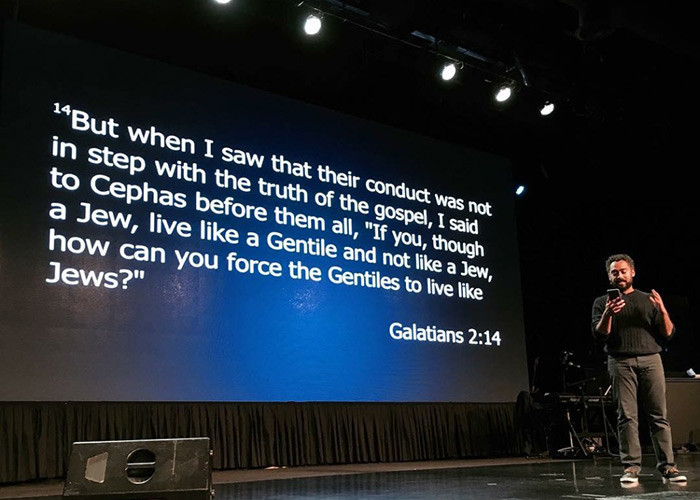

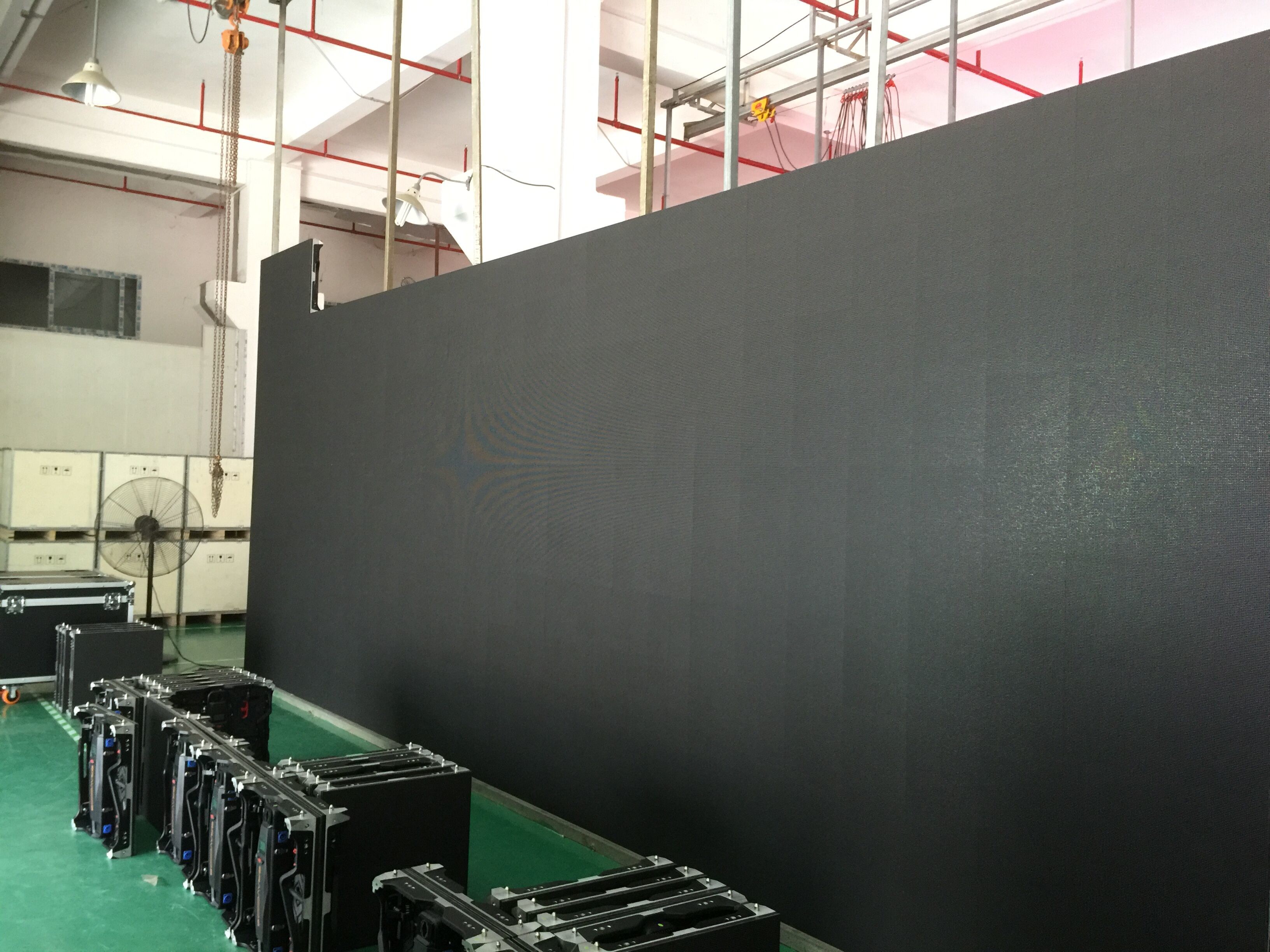

Product Photos:
Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, harbors, etc;
I-Series (small pixel pitch) Specification :
| Pixel Pitch | 3.9mm |
| Pixel Configuration | SMD2121 |
| Module Resolution | 64*64dots |
| Module Pixles | 4096dots |
| Module Size | 250*250mm |
| LED Cabinet Specification | |
| Cabinet Size(W*H*D) | 500*500*80mm |
| Cabinet Resolution | 128*128dots |
| Module Quanity | 4pcs |
| Cabinet Pixels | 16384dots |
| Material | Die Casting Aluminum |
| Brightness | ≥1200cd/m2 |
| Pixel Density | 65536dots/m2 |
| Driving Method | 1/16 scan constant current |
| View Angle | 140H,120V |
| Optimal Viewing Distance | ≥3 |
| Brightness Control | Red,Green and Blue 4096 Grade/Each |
| Fresh requency | ≥2000Hz |
| Frame Frequency | 60Hz |
| Input Voltage | AC100 - 120V/50Hz |
| | AC200 - 240V/50Hz |
| Defects Rate | ≤0.00001 |
| Power Consumption | Max:160W/Cabinet Average:80W/Cabinet |
| Screen weight | 8kg/Cabinet |
| MTBF | >10,000 hours |
| Life span | ≥100,000 hours |
| Earth Leakage Current | <3mA |
FAQ
1. Can we make any size of led display?
Nope , according the led module size and cabient size, such as P3.9mm outdoor led display, the smallest unit size is: 500x500mm.
2,What's best size of led display?
The best aspect ratio of LED display are W16:H9 or W4:H3, recommand order 4x3=12pcs for the demo p3.9mm indoor led display
3,How to install led display?
We will provide drawing of steel structure or hanging truss,then you can install led display very easy.
*** May I also know your requirements and where you come from?
Eachinled would be very glad to provide you the most professional solution with good price upon receipt of your confirmation :)
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. Onsite installation instruction and regular inspection
