64x32 Module Video LED Display, outdoor led video wall With Hub75 Port
Production Description:
1.140 º viewing angle, appealing to a wider audience.
2. Protection level is IP65, suitable for outdoor application.
3. Stiffeners are adopted for cabinet design, safe, stable and reliable.
4.Exquisite and tasteful appearance due to the structural wire layout.
5. Facile lock on rear cover, making it quicker for installation and maintenance.
Advantages:
1.Excellent color reproduction, ultimate image quality, high contrast.
2. Modularity & fanless design, Lightweight and slim die casting aluminum casing
3. Excellent greyscale, high contrast.
4. Smart fast side locks make screen assembly fast and easier.
5. Perfectly suited for cross-rental/touring applications.
Technical Specification:
| Items | Parameter |
| Pixel Pitch | PH5.95mm | PH6.944mm |
| Module Resolution(W*H) | 96(W)*192(H) | 72(W)*144(H) |
| Pixel Configuration | 1R1G1B(in 3 n 1) |
| LED Encapsulation | White SMD 3528 | White SMD 3528 |
| Pixel Density | 36864 Pixel /m2 | 20736 Pixel /m2 |
| Driving Method | 1/16 Scan | 1/ 9 Scan |
| Refresh Frequency | ≥1880Hz |
| Driver IC | Special constant current IC with high refresh rate & high grey scale |
| Grey Scale | 14Bit(depending on the system and IC configuration) |
| Cabinet Size | 500*1000mm |
| White balance Brightness | ≥900cd/ m2 | ≥1300cd/ m2 |
| Color Temperature | 8000K±500(adjustable) |
| Viewing Angle | Horizontal 140° Vertical 120° |
| Optimal Viewing Distance | >6m | >7m |
| Working Voltage | AC 220V/110V±10% |
| Module voltage | DC4.2V |
| Max Power Consumption | 120W/PCS |
| Avg.Power Consumption | 60W/PCS |
| Lifetime | 50000 hours |
| Operating Temperature | –10℃~65℃ |
| Net weight | 13Kg/pcs | 12Kg/pcs |

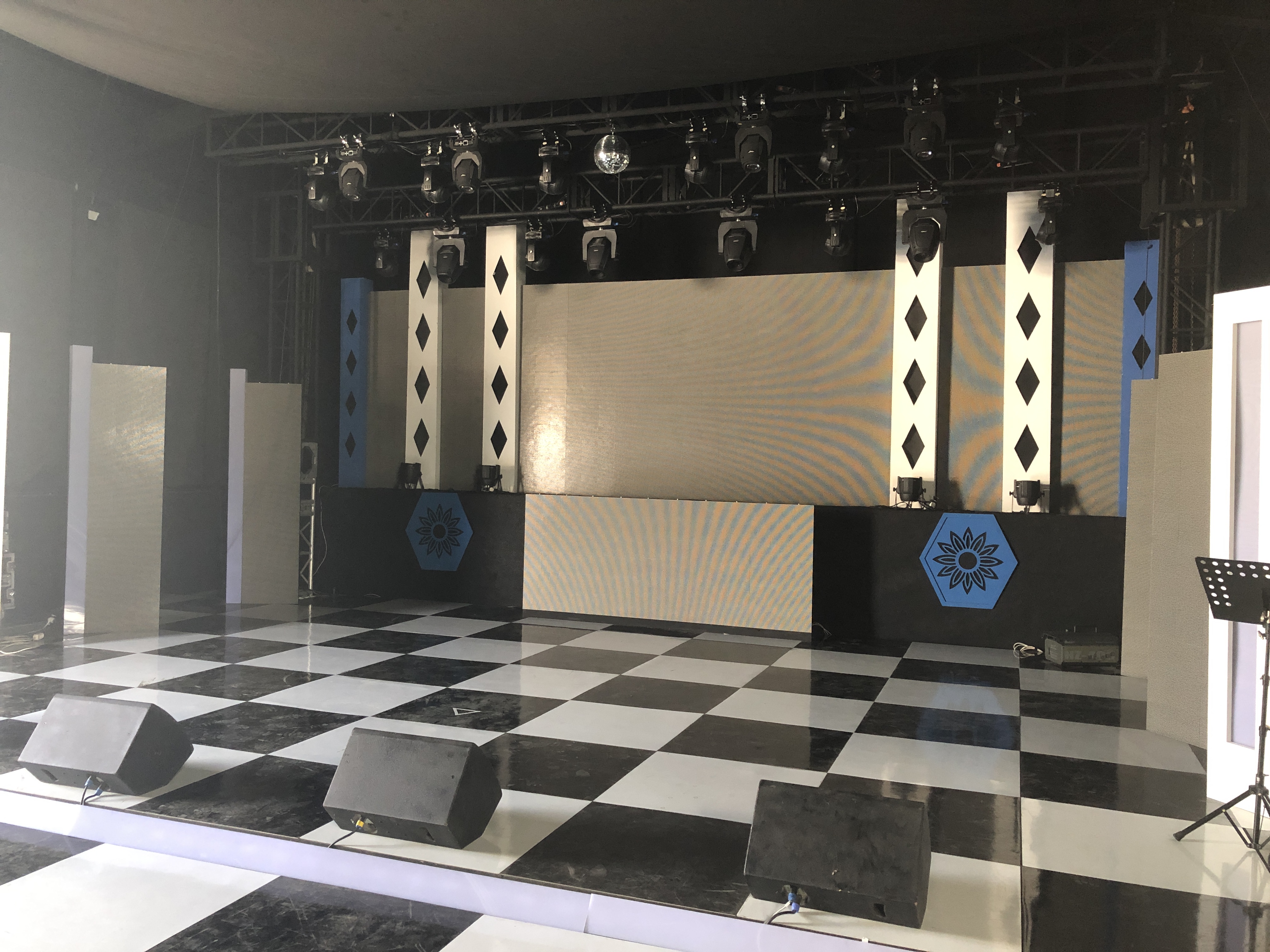

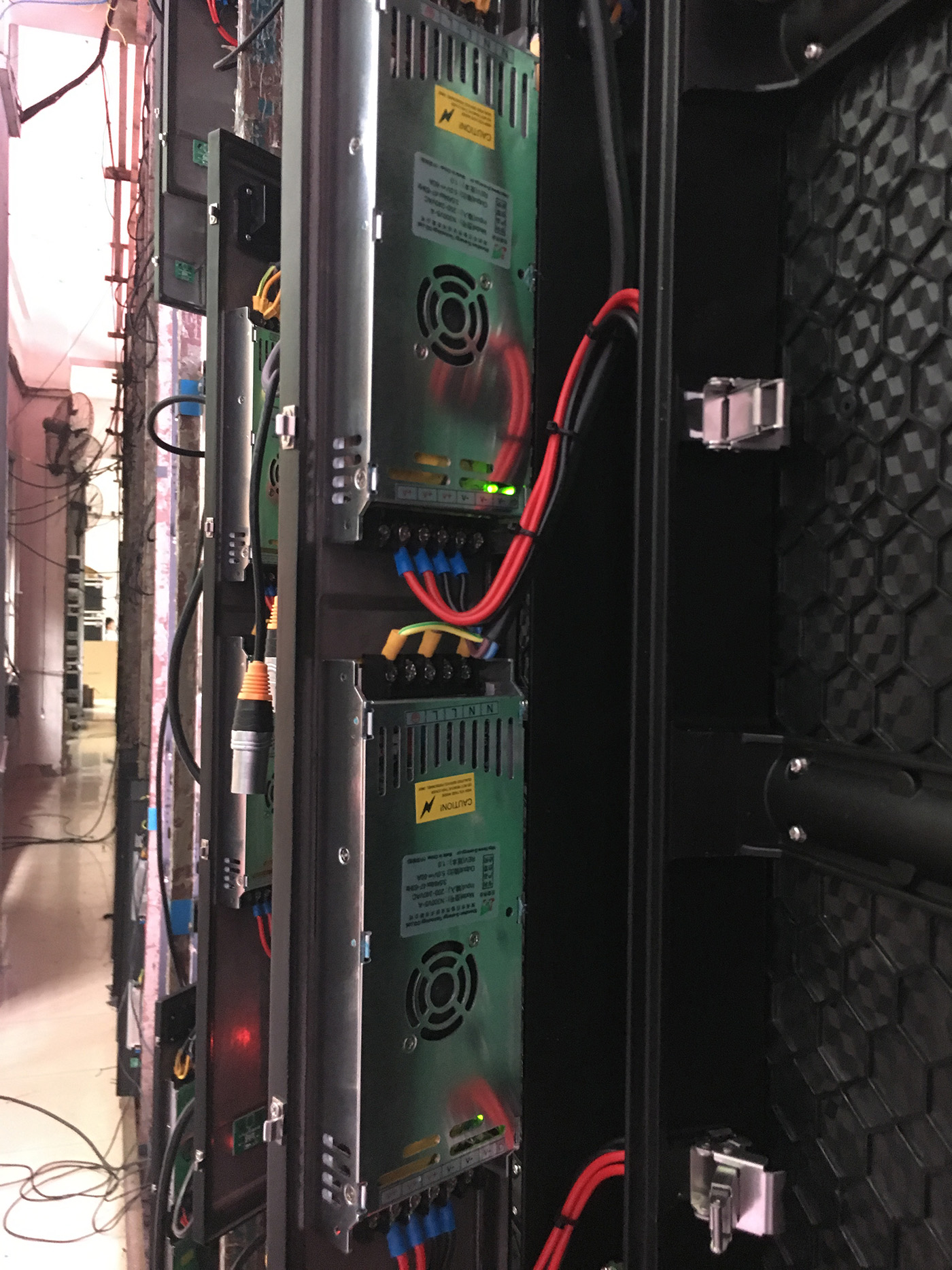

Detail Product Pictures:
FAQ:
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Indoor&Outdoor P2.5mm/P2.9mm/P3mm/P3.75mm/4mm/5mm/P6mm/P4.8mm/P5.33/P6mm)
Q2: Where is it used for?
A2: Indoor & Outdoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar And Linsn controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
